Control panel suitable for Scania Next Gen / NGS / NXG refrigerator

Please carefully check the refrigerator model, catalogue number and nameplate marking before purchase.

Item for sale:

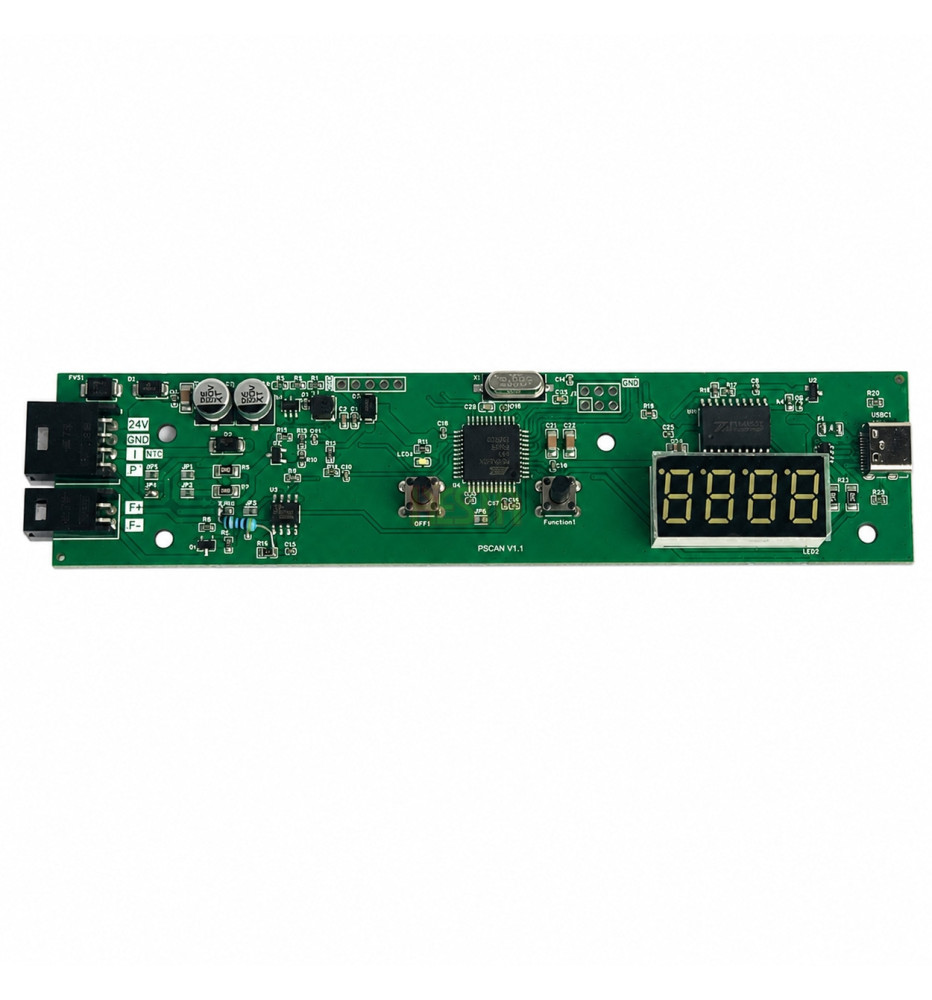

Control panel / control board suitable for selected Scania Next Gen / NGS / NXG truck refrigerators.

Application:

The control panel is responsible for user-side refrigerator operation. It allows switching the refrigerator on and off, setting the cooling temperature and operating the display.

The part is intended for selected Scania G/P/S/R compressor refrigerators used in trucks and tractor units after 2016.

Suitable for selected SCANIA Next Gen / NGS / NXG refrigerators:

• model CP/CG20 20L Cat. No.: 2770774 / 9D117428 – 20 LT
• model CP/CG20 20L Cat. No.: 2034762 / 8E037428 – 20 LT
• model CP/CG17 17L Cat. No.: 2770785 / 1A257428 – 17 LT
• model CP/CG17 17L Cat. No.: 2034763 / 7J147428 – 17 LT
• model CR20 30L Cat. No.: 2706544 / 9C227428 – 30 LT
• model CR20 30L Cat. No.: 2706544 / 9F287428 – 30 LT
• model CR20 30L Cat. No.: 2034756 / 3L137428 – 30 LT
• model CR20 30L Cat. No.: 3261151 / 5C127428 – 30 LT / CR20
• model CR20 30L Cat. No.: 2706576
• model CR17 17L Cat. No.: 2770786 / 9J267428 – 17 LT
• model CS20 40L Cat. No.: 2706575 / 8G027428 – 40 LT
• model CS20 40L Cat. No.: 2706575 / 2K067428 – 40 LT
• model CS20 40L Cat. No.: 2034757 / 6J197428 – 40 LT
• Scania Next Gen model Cat. No.: 2706578

Panel functions:

- switching the refrigerator on and off,
- setting the cooling temperature,
- operating the digital temperature display,
- controlling the basic refrigerator functions,
- cooperation with the Scania refrigerator control system.

Compatibility: the panel works via the D/I signal with compressor controllers 101N2020 and 101N2050, used among others in CR20 refrigerators.

Markings commonly found on the electronics / control board:

4.1539.2/3, LP 160659, FW 1.9.1, 28214, 50388, XZG-1, Microchip PIC18F, 1702GVG, QCD88604, T1701, E227809, 32312, SRN8040-470MCT-ND, LIS352AX.

Symptoms of a faulty control panel:

- the refrigerator does not respond to the control panel,
- the refrigerator cannot be switched on or off from the panel,
- the temperature cannot be set,
- the display does not work or shows incorrect information,
- the buttons do not respond correctly,
- the refrigerator shows communication errors,
- the unit operates unstably after a power failure, short circuit or voltage drop.

Additional data commonly found on refrigerator nameplates:

- Refrigerator power supply: 24 VOLT DC – 50W
- Refrigerant commonly found on nameplates: R134a or R1234yf
- Capacities commonly found on nameplates: 17 LT, 20 LT, 30 LT, 40 LT

Important before purchase:

This control panel is intended for specific versions of Scania Next Gen / NGS / NXG refrigerators. Before ordering, please check compatibility with your refrigerator.

Before purchase, compare the refrigerator model, catalogue number, nameplate marking, markings on the old control board and the type of compressor controller used in the refrigerator.

If you are not sure, please send us a photo of the refrigerator nameplate, photos of the old control panel and the compressor controller. This will allow us to confirm whether the panel is suitable for your device.
