Electronic control kit for MAN New 2018 refrigerator

Please carefully check the refrigerator model before purchase.

Suitable for MAN refrigerator:

• model Facelift Breit 81.63910.6109, SKU 9105330716
• model Facelift Schmal 81.63910.6110, SKU 9105330715
• model NHMR ALG10 81.63910-6296, SKU 9600006623
• model NHMR ALG10 81.63910-6445, SKU 9600050518

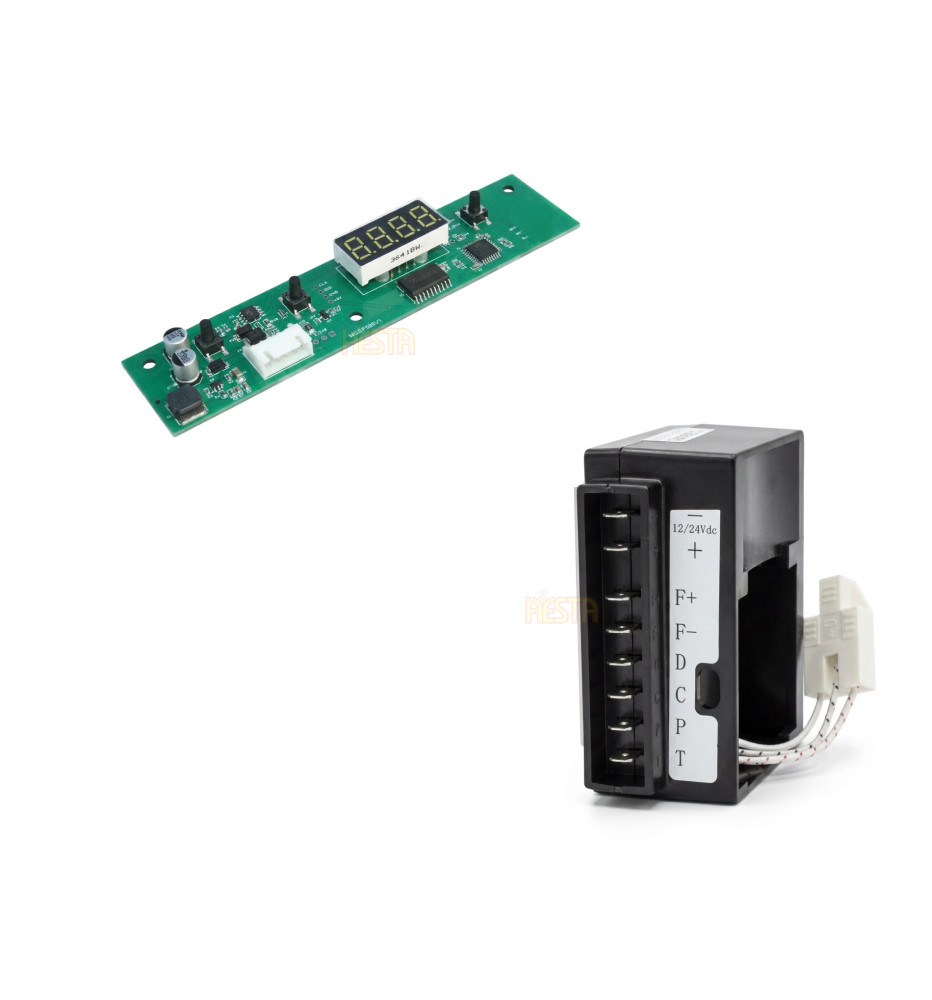

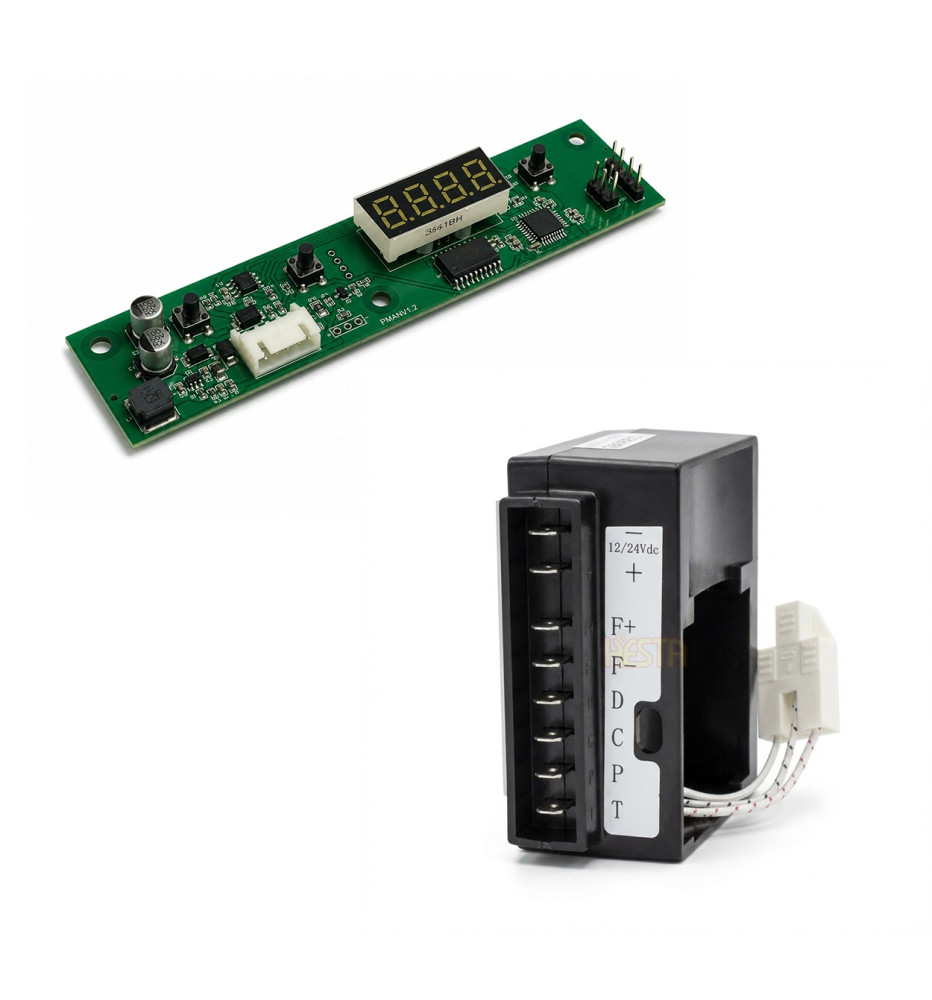

Kit includes:

- PMAN control panel

- 101NBD14F5 compressor controller

This kit is designed for MAN vehicle refrigerators used in truck and tractor unit cabins. It is used when the original control panel, compressor controller or refrigerator electronic communication system is damaged.

The kit restores the basic refrigerator functions, such as switching the refrigerator on and off, temperature setting and proper compressor operation control.

All elements required for operation are located on the control unit in the upper part of the refrigerator:

- On / off switch
- Selection buttons for setting the required cooling temperature
- Digital temperature display

The 101NBD14F5 controller is responsible for controlling the compressor used in the MAN refrigerator. The kit is intended for refrigerators with a Secop / Danfoss BD1.4F-FSD Micro compressor.

Kit application:

The kit can be used as a replacement for the original electronics in MAN refrigerators where there are problems with the control system or compressor operation.

It is especially recommended when the refrigerator:

- does not switch on,
- does not cool,
- does not start the compressor,
- switches off shortly after starting,
- does not respond to the control panel,
- does not allow temperature setting,
- has a damaged control panel,
- has a damaged compressor controller,
- displays error E1, E2, E3, E4, E5, E6, E7 or E8,
- has a communication problem between the panel and the controller,
- operates unstably after a power failure, short circuit or voltage drop.

Using the complete kit allows typical problems in the original MAN refrigerator electronics to be eliminated, including errors E1, E2, E3, E4, E5, E6, E7 and E8.

Temperature sensor compatibility:

The kit works with the original temperature sensor used in the MAN refrigerator, provided that the factory sensor is functional.

Depending on the version and configuration, the kit can also work with a digital temperature sensor.

Important before purchase:

This is a replacement / repair kit intended for specific versions of MAN refrigerators. Before ordering, please check compatibility with your refrigerator.

Before purchase, compare the refrigerator model, catalogue number, SKU and the type of compressor used.

If you are not sure, please send us a photo of the refrigerator nameplate and photos of the old control panel and compressor controller. This will allow us to confirm whether the kit is suitable for your device.
