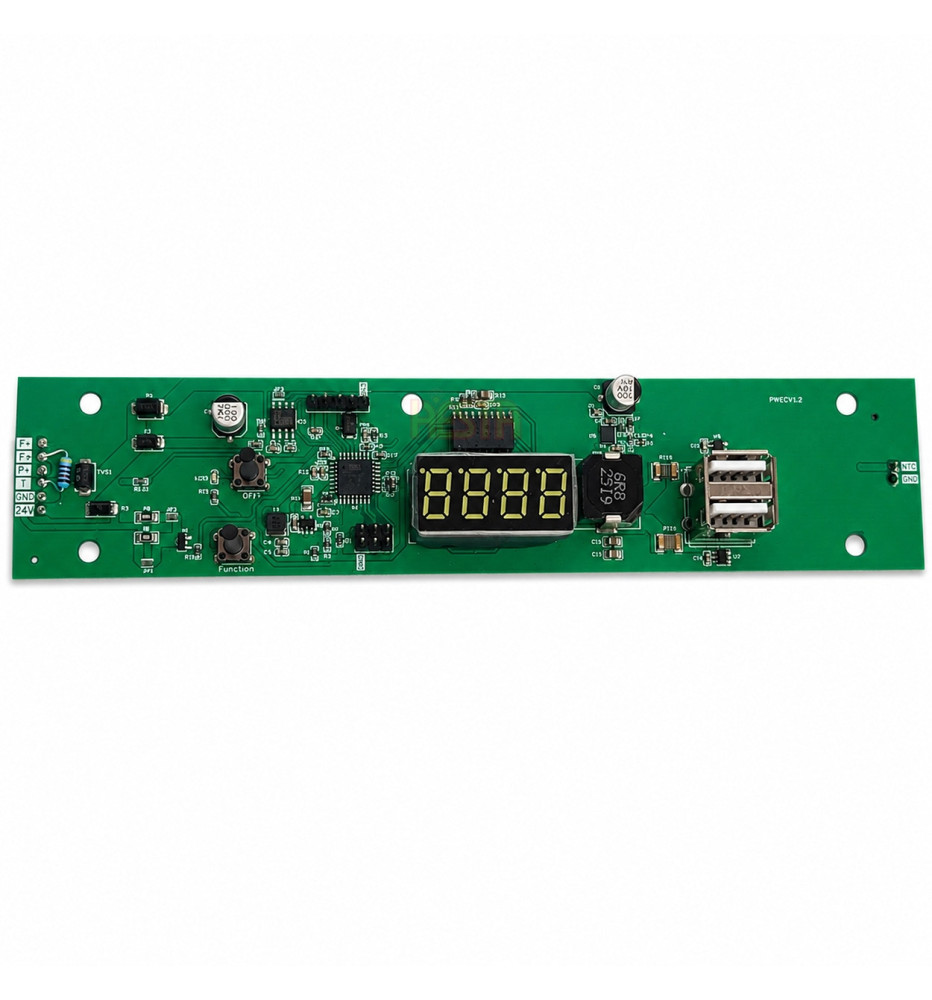

USB Control Panel for Temperature Setting, Compatible with Iveco S-Way / Stralis S-Way Refrigerator

Please carefully check the type and model of the control system installed in your refrigerator before purchase!

Note: this panel is a compatible / replacement part used for repair and modernization of Iveco refrigerators. It is not an original Iveco control panel.

Compatible, among others, with:
truck refrigerators Iveco S-Way / Stralis S-Way, 24V cabin refrigerators, models:
- SP910
- SP910-4
- SP911
- SP911-3
- SP911-4
- SP911-5
- SP913
- SP913-4
- SP940
- SP944
- SP-944-1

Iveco reference numbers commonly found with these refrigerators:
5802484029, 5802797180, 5802797207, 5802797209, 5802797215, 5802797223, 5802497362, 5802521045, 5803089061.

The PIVECO USB panel is a control element designed for Iveco cabin refrigerator operation. Depending on the refrigerator version, the panel can be used for repair, modernization or activation of the refrigerator control system.

The panel allows, among others:

- switching the refrigerator on and off
- setting the required cooling temperature
- operating the digital temperature display
- USB socket operation – charging up to max. 2.1A per channel
- controlling the cabin refrigerator operation
- working with Secop / Danfoss compressor electronics
- diagnostics and refrigerator start-up after electronics repair

Temperature setting range and voltage threshold:
The panel allows temperature setting adjustment from 0°C to +15°C. After connection, the panel sets the voltage threshold to approx. 22.5V instead of the standard 24.6V, allowing the refrigerator to operate at a lower supply voltage. This function works with controller / program C_1_021.

Panel and electronics markings commonly found in Iveco refrigerators:
B300212000, E321060, S300212000, S300212010, LP23/28 SV1.9, LP21/40 SV1.8, 4.1.621.2/5, 4.1.620.2/3, HW:2.1;02190, SW1.9.

Compatible Secop / Danfoss controllers and electronics:
- Secop 101N2020
- Secop 101N2030
- Secop 101N2050
- Secop / Danfoss BD1.4F
- BD1.4F-VSD
- BD1.4F-FSD
- Iveco program / code C_1_021
- compressor start electronics
- 24V compressor controller

Typical symptoms of panel or control system failure:
- refrigerator does not switch on from the panel
- panel does not respond
- no possibility to set the temperature
- damaged display
- no indication on the display
- buttons do not work
- panel does not control the refrigerator
- communication problem between panel and controller
- refrigerator does not respond to temperature change
- damaged panel electronics

Technical note:
Iveco refrigerators may have different versions of panels, controllers, wiring, connectors and electronics. Before purchase, compare the current panel, electronics markings, refrigerator reference number and controller model. In case of doubt, please send photos of the refrigerator nameplate, old panel, controller and connectors.

Important:
The PIVECO USB panel is used for repair and service of specialist Iveco truck refrigerators. Depending on the refrigerator version, it may be necessary to check the installation, controller configuration and correctness of electrical connections.
