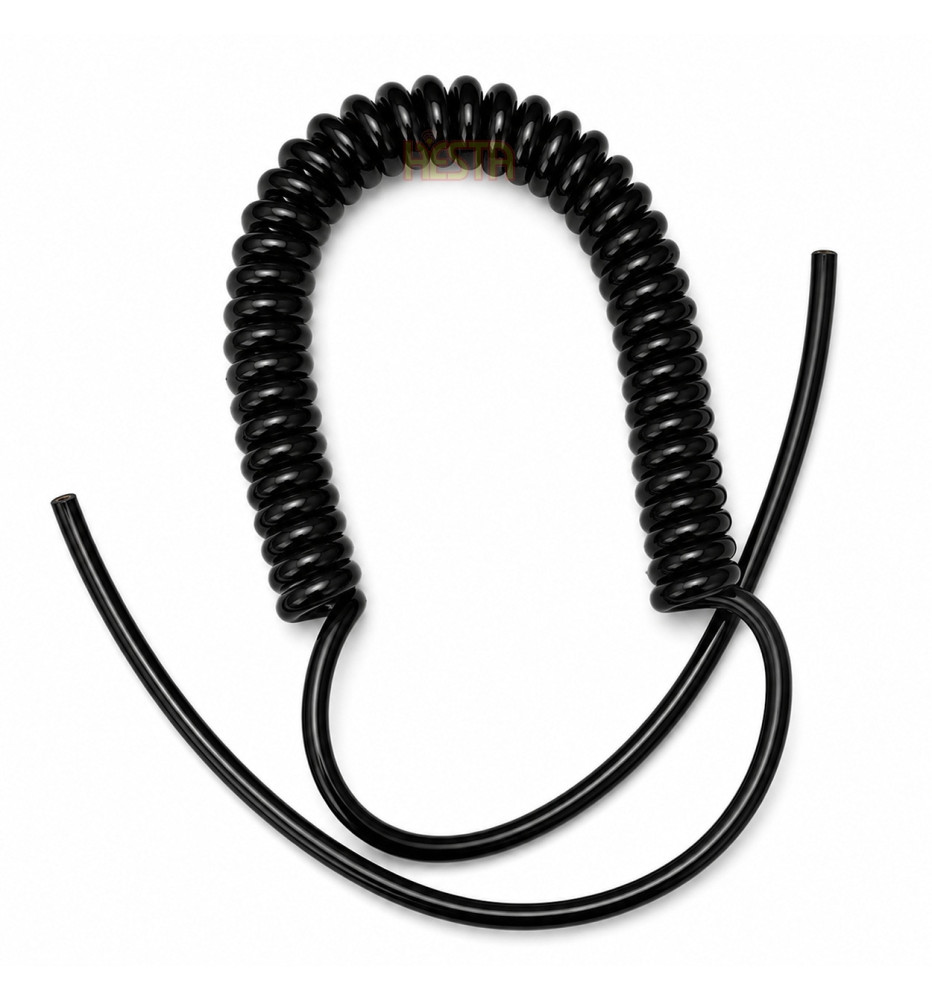

Spiral power cable 2×1 mm² for 12 V / 24 V vehicle refrigerators without terminals

Item for sale:

The item for sale is a universal spiral power cable 2×1 mm² designed for making or repairing the power lead of a vehicle refrigerator / cooler, compressor cooler or another device operating in a 12 V or 24 V vehicle installation.

Application:

The cable can be used to make a new power lead, replace a damaged spiral cable or repair the power connection of a vehicle refrigerator. It is also suitable for 12 V / 24 V installations used to power small devices, panels, controllers, modules, lighting, fans and vehicle accessories, provided that their current consumption is within the cable parameters.

Without terminals:

The cable has no fitted terminals, plugs, pins, crimp terminals or connectors. This allows it to be adapted to a specific installation by crimping suitable terminals or fitting a selected plug according to the requirements of the repaired device.

Cable features:

The cable is flexible, has a black glossy insulation and returns to its spiral shape after stretching. The spiral design helps reduce cable tangling and allows convenient cable routing near devices that may be pulled out, moved or periodically disconnected from the installation.

Technical data:

Product type: spiral power cable / power lead
Number of cores: 2
Cable cross-section: 2×1 mm²
Operating voltage: 12 V / 24 V DC
Maximum load: 8 A
Recommended maximum transmitted power at 12 V: 90 W
Recommended maximum transmitted power at 24 V: 180 W
Conductor material: copper, stranded wire
Insulation: PUR, black, glossy
Flexibility: flexible cable, returns to its spiral shape after stretching
Shielding: none
Operating temperature: 5…55°C
Storage temperature: -20…70°C
Length at rest: approx. 97 cm
Recommended working length after stretching: up to approx. 150 cm
Maximum length after stretching: approx. 180 cm
Cable outer diameter: approx. 7 mm
Spiral outer diameter: approx. 25.5 mm
Terminals: no fitted terminals
Installation: for fitting a selected plug, connector, crimp terminal, pin or socket terminal

Suitable, among others, for:

- 12 V / 24 V vehicle refrigerators
- compressor coolers in trucks
- drawer-type refrigerators installed in vehicle cabins
- portable and built-in refrigerators
- powering small devices in 12 V / 24 V installations
- repairing spiral cables in vehicle installations

Important before purchase:

Before purchase, check whether the 2×1 mm² cable cross-section, cable length and maximum load of 8 A are suitable for the given device. Installation requires selecting and crimping suitable terminals according to the device installation.

Installation and use notes:

The cable should be installed in a way that protects it against cuts, abrasion, crushing and contact with sharp edges. In vehicle installations, it is recommended to use appropriate circuit protection, such as a fuse selected according to the current consumption of the device and installation parameters.

The cable should not be exposed to long-term direct UV radiation, fuels, oils, greases, solvents or aggressive chemicals. During storage, it is recommended to keep the cable in a dry place, away from high-temperature sources and without constant tension on the spiral.
